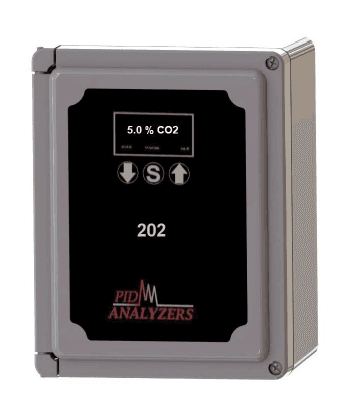

Model 202 Infrared Analyzer
Product information
- The Model 202 is a reliable & rugged dual beam non dispersive infrared (NDIR) monitor-ing system used primarily for the measurement of CO2, CH4, CO, & N2O hydrocarbons.
- The PID Analyzers Infrared gas analyzer uses a dual beam interference filter instrument and has been designed with the process and plant environment in mind.
Specifications
- IR Detectors
CO, CH4, CO2 N2O, (THC)
- Zero drift
Automatic compensation; <1% per month
- Span Drift
Auto cal each 24 hours (with contact closure), less than 1% every 24 hours
- Wide range of response
0-1 to 0-100%
- Support gases
no support gases
- Readout
Backlit LCD Display with 11 character keyboard
- Standard output
5 VDC, RS232
- Enclosure
Weight: 8 pounds Wall (NEMA 4)
6.75"W x 10 3/8"H x 6"D
- Power requirements
00-240VAC, 1 amps
- IR- specify range
CO2 ppm or % up to 100%
CO % 0-100, 0-10%
N2O 0-1,000 ppm
CH4- 0-5, 0-100%;0.1 to 100%
Features
- Automatic Restart
In the event of a power outage, the instrument will automatically restart
- Low cost of ownership
The long lifetime of the analyzer coupled with the minimal level of maintenance results in a low cost of ownership
- Wide operating range
With auto range changing necessary
- Push button Automatic calibration
Automatically adjusts response
- WiFi, Bluetooth outputs
0-1 VDC analog output
- Up to 3 dual setpoints
that are programmable- can be used to shut down a process, remotely dial a number...
