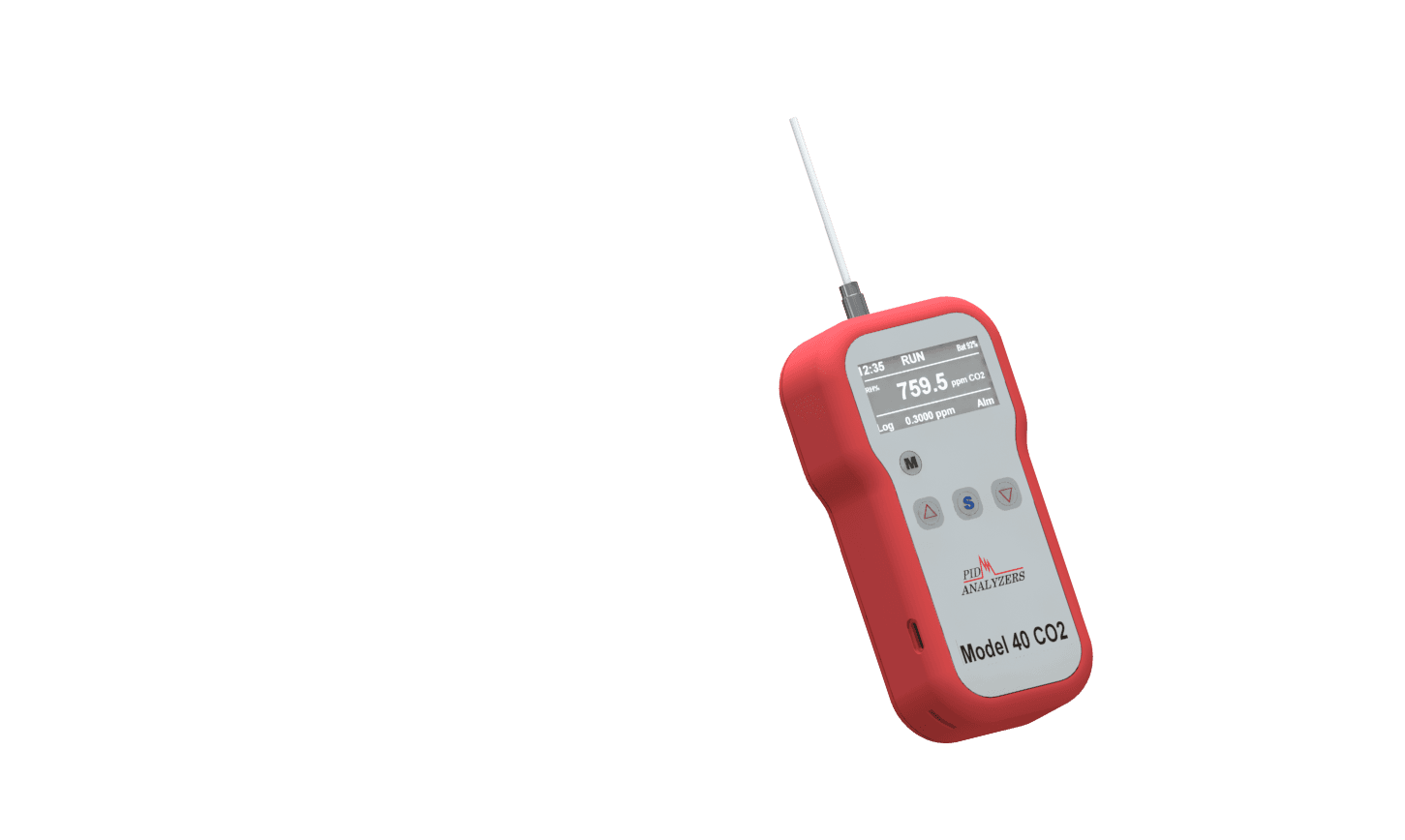

Model 40 Infrared CO2 Analyzer
Product information
Dual Beam Infared CO2 with RH% and Temperature.
Specifications
- Detector Type
Dual Beam Infrared sensor for CO2
- Power
Rechargeable 3.7 V LiPO battery
- Display
2.4” Bright OLED
- Dimensions
6 1/8" x 3 5/8" x 1.57”
- Accuracy of Measurements
+/- 2%
- Operating temperature
0-50o C
- Certifications
CE, RoHS
- Analog channels
16 bit ADC for best precision & accuracy
- Electrical classification
General purpose, not for hazardous area
- Outputs
RS232: can be used to transfer the limited 1,500 points to a PC via a USB cable
- Datalogging - Optional
100,000 data points includes Bluetooth, RTC, memory; select BT on to
transfer data to PC
- Alarm
Audible, visual (blinking display)
Features
- Large bright 2.4" OLED Display
- 64 bit ADC for accuracy over 0-10,000 ppm
- Rechargable LiPO battery
- RS232 with 1,500 data points
- Optional datalogging with BT, > 100,000 additional data points and real time clock
- RH & T measurements to check HVAC operation
